In recent years, with the innovation and development of CAD technology, the functions of CAD software have been continuously improved and enriched, giving enterprise users more choices and experiences. On the other hand, many enterprises, especially small and medium-sized enterprises in the rapid development stage, are more willing to seek to meet the actual needs of the enterprise, provide more efficient and intelligent CAD overall solutions, and effectively solve enterprise CAD with more humanized price. Application challenges.
Guangdong Changling Air Conditioning Air Conditioner Manufacturing Co., Ltd. (hereinafter referred to as “Changling Air Conditioningâ€) is a national high-tech enterprise specializing in the research, development, manufacture and sale of air energy water heaters. It has self-developed commercial air energy hot water machines (ten series, Nearly 100 products), household air energy water heaters, multi-function heat pump models and other series of products and nearly 100 national high-tech patents, has won the honorary title of Guangdong famous brand products, Guangdong famous trademarks.
Figure 1: Guangdong Changling Air Conditioner Air Conditioner Manufacturing Co., Ltd.
As a high-tech enterprise specializing in the field of home appliance manufacturing, Changling Air Conditioning has resolutely turned to the air energy field in 2002 when the industry outlook is uncertain, with its sensitive knowledge of market environment changes and accurate predictions of industry trends. After more than ten years of development, Changling Air Conditioning is one of the leading brands in the air energy water heater industry. However, from the air conditioning products to the air energy water heater business transformation, Changling air conditioning has also faced enormous challenges.
Business transformation faces enormous challenges, and Changling chooses Zhongwang CAD machinery to solve design and management problems.
“Air can be used as an emerging product, and the requirements of our manufacturers in product technology and auxiliary design have been greatly improved!†said the person in charge of the technical department: “The original management thinking and the old management model lead to high production management costs. No, and the heavy cost pressure will eventually lead to insufficient innovation ability of the enterprise!†At the beginning, Changling Air Conditioning attempted to solve this problem by implementing the system. Later, after various evaluations, it finally selected CAD design, drawing encryption and document management. The function of the Zhongwang CAD mechanical SE version.
In this regard, the person in charge of the technical department explained: "Some system platforms in the market are very functional. At present, the business of air-conditioning products of Changling air-conditioning is still in a high-speed development stage, and the application requirements of certain systems for enterprises are still very limited. Implementation will cause waste of resources.†He said: Changling Air Conditioning hopes to find a software product with “PDM management method + drawing encryption functionâ€, which can realize the basic management of CAD drawings and have the function of drawing confidentiality. More importantly, It can achieve compatibility and reuse of historical achievements.
Based on this, Changling Air Conditioning will focus on the SE version of Zhongwang CAD Machinery, which has just been launched. “As a loyal user of Zhongwang CAD, we are fortunate to be the first to apply the SE version of the CAD machine at this time. It is almost exclusively tailor-made for our developing small and medium-sized enterprises.†The technical department is responsible for People commented as follows: Zhongwang CAD mechanical SE version has a good continuation of the efficient design function of the mechanical version. On this basis, the EDM system realizes the collaborative design and authority management of CAD design drawings, and has the underlying encryption technology of CAD platform. It is a good match to the use environment of our small and medium-sized enterprises, which makes the design drawings of Changling air conditioner reuse and data security more secure, which helps us to save costs.
Tailor-made professional functions, Zhongwang CAD significantly shortens the drawing approval cycle
In the technical department of Changling Air Conditioning, the design workflow includes drawing, proofreading, process, auditing and validation. Before using the SE version of the CAD machine, all of these processes were completed by manual proofreading. After reviewing the drawings, the designer signed each drawing one by one, and the whole process took a long time. Minimizing the product development and production cycle is of great importance to Changling Air Conditioning's continued rapid development.

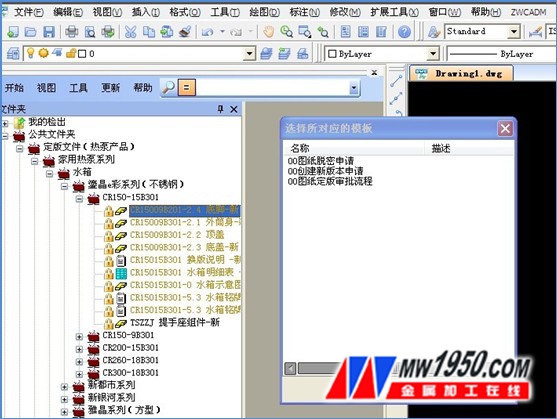

Figure 2: Drawing approval process function of Zhongwang CAD custom development
“Zhongwang Software has customized and developed the drawing approval process function in line with the company's office specifications according to our actual application requirements, which is convenient for designers to consult the drawings and materials, greatly improving the efficiency of drawing approval.†The technical department engineer further introduced: We have selected Three basic processes: First, the application for the drawing validation process, which is a confirmation process for proofreading drawings and reviewing to finalization. Designers do not need to print the drawings into a booklet, which can be done directly through this process, saving time and cost. More importantly, each designer will automatically generate a signature confirmation after the review is completed, which is very convenient and fast. The second is the new version of the drawing innovation process, this is mainly for the modification of the drawings. After the designer revised the drawings, the original old drawings still existed independently. The coexistence of several versions of the drawings before and after, not only facilitates the designer to check the comparison, but also ensures the accuracy of the modification of the drawings and the effectiveness of the control, to avoid confusion in the drawings. The third is the application for de-binding. This process is mainly to strengthen the confidentiality of the drawings and prevent the leakage of data, which is of great significance.
Postscript: With the continuous deepening of the application of CAD software technology, more and more excellent enterprises such as Changling Air Conditioning have begun to break through the design functions of the software itself, but more expect the software suppliers to be based on the enterprise. The actual situation is customized to develop some personalized functions to further solve the problems of enterprise design and even information management. As a leading international CAD software and service provider, we always provide the CAD overall solution for each industry user to meet the needs of users, and help more outstanding national enterprises to achieve long-term development.
